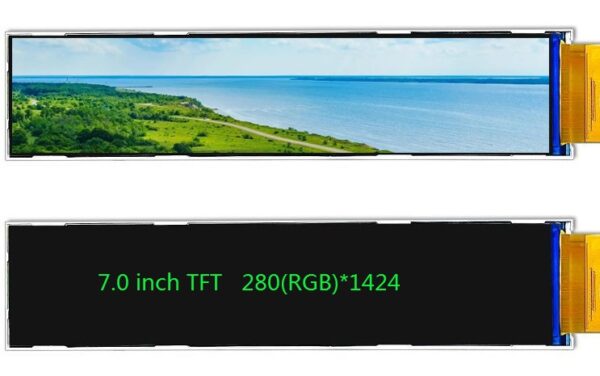

7 inch 280*1424 40pin Stripe TFT Display

Categories IPS Display, TFT Displays Tags 7 inch TFT LCD, TFT Display, TFT LCD

This 280×1424 resolution LCD TFT is a TFT display with a MIPI interface, offering true color and full view. This Liquid Crystal Display is RoHS compliant and can come with or without a touchscreen.

Additional information

Model No.	FW070TFT-V40A07
Module Size	7 INCH
Outline Dimension(mm)	38.20 (H)181.47(V)3.40(D)
Active Area	33.60 (H)*170.88 (V)
Number of Pixel	280(RGB)x1424
Viewing Direction	ALL
Interface	MIPI
Brightness(cd/m²)	350
Operating Temperature	-20°C ~ 70°C
Storage Temperature	-30°C ~ 80°C

Product Details

7″ Full Color / Medium Brightness TFT Module Transmissive / Normal White with 280 RGB x 1424.

* FW070TFT-V40A07 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, and backlight.

* This TFT LCD module resolution is 280 x 1424.

* Optional with capacitive touch panel and resistive touch screen.

* Backlight with different brightness options from 200 – 1500cd/m2 is available.

* Specific touch panels can be designed & customized.

* RoHS & REACH compliant.

Application: Embedded Systems, automation, GPS, medical equipment, Industrial device, security equipment, etc

These are just a few of our standard TFT modules; we still have a lot of TFT modules to offer.

If none of these modules meet your requirements in terms of brightness, interface, or connection method, please email us at info@fwdisplays.com
