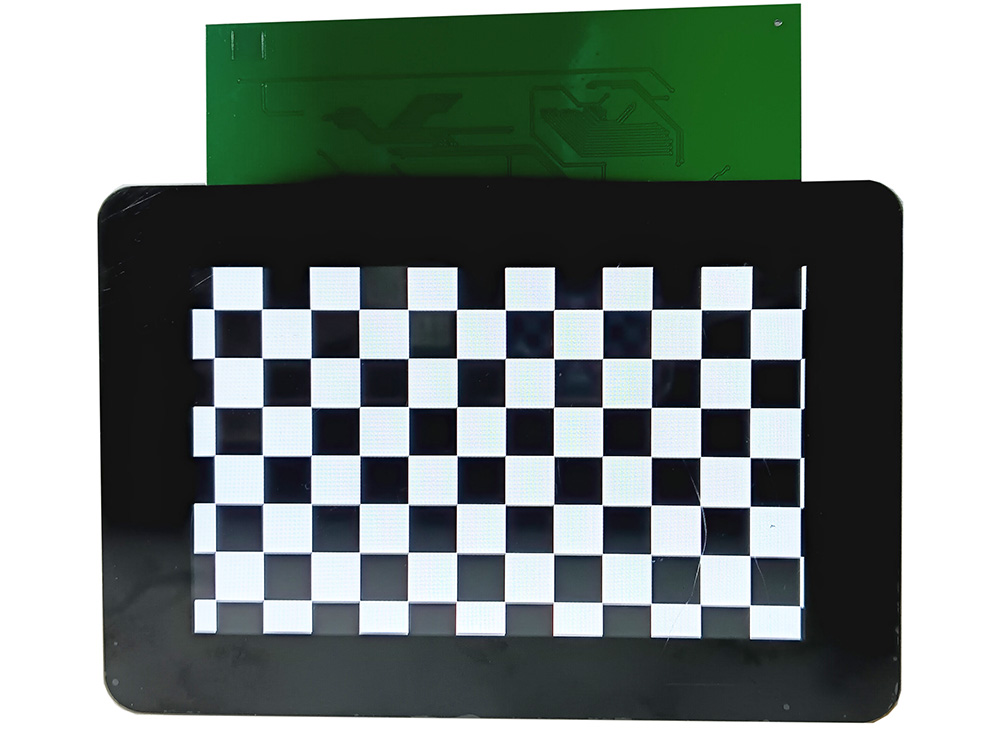

TFT050-C02-PCB1 is an 800×480 dots 5″ color TFT LCD module display with SSD1963 controller board, superior display quality, super wide viewing angle and easily controlled by MCUs such as 8051, PIC, AVR, ARDUINO, and ARM .It can be used in any embedded systems, industrial devices,security and hand-held equipment that requires display in high quality and colorful images.
| Model No. | TFT050-C02-PCB1 |
|---|---|
| Module Size | 5 INCH |

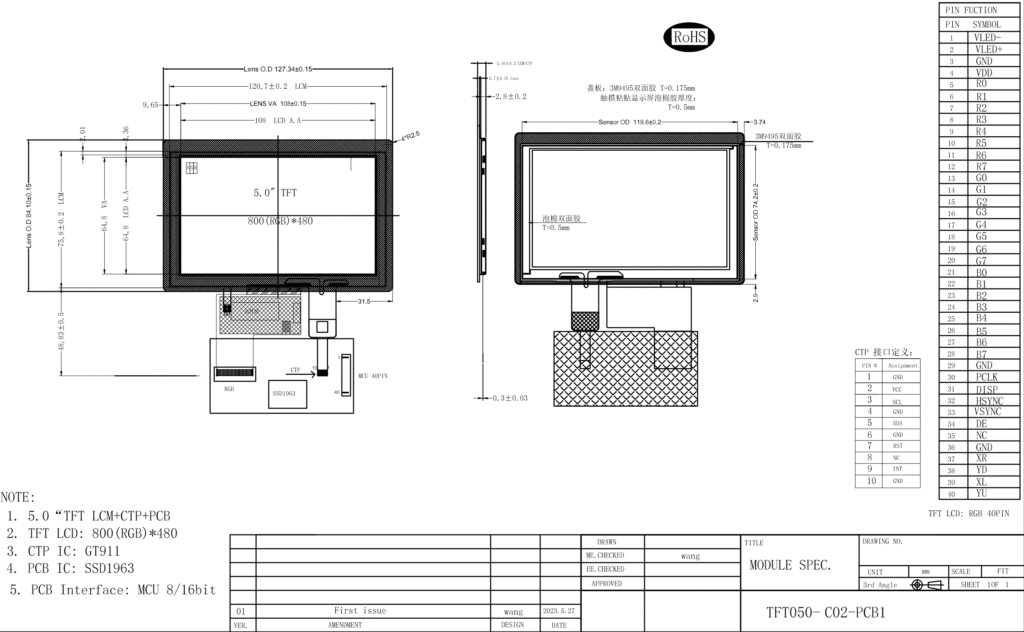

| Outline Dimension(mm) | 120.7(W) x 75.8(H) x 3.0 (D) |
| Active Area | 108.00(W)×61.80(H) |
| Number of Pixel | 800(RGB) × 480 |
| Viewing Direction | ALL |
| Brightness(cd/m²) | 300 |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

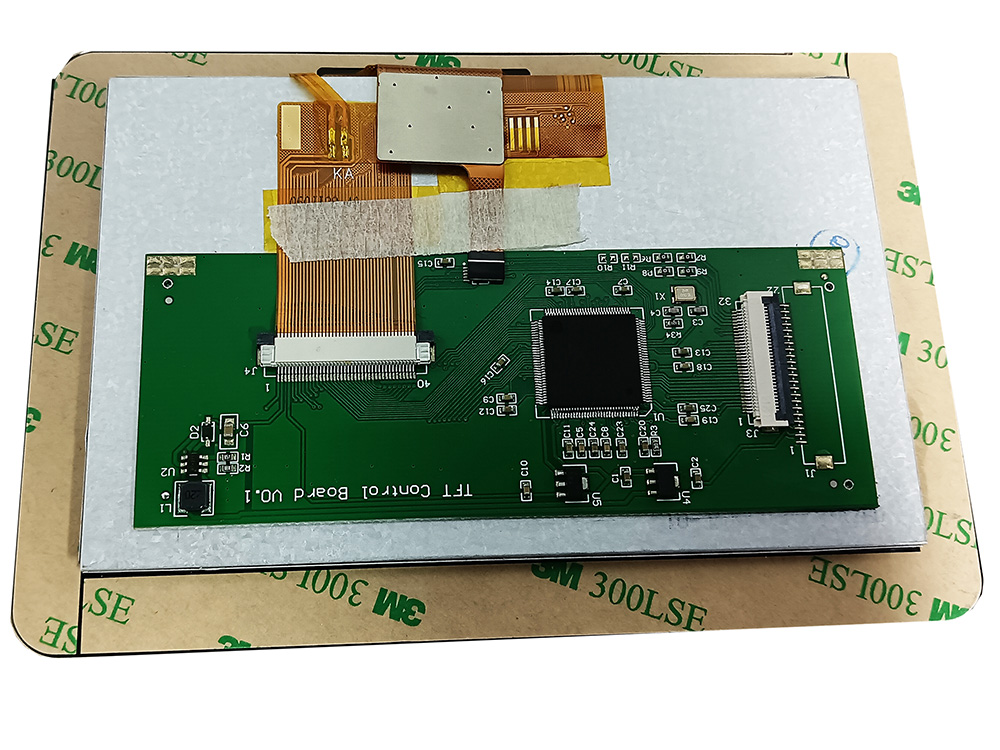

5 inch 16BIT SSD1963 TFT Module with Controller board.
* TFT050-C02-PCB1 is a Transmissive type color active matrix liquid crystal display (LCD).
* 5.0 (15:9 diagonal) inch configuration
*Using 8/16-bit parallel bus transmission with a fast transfer speed
* This TFT LCD module resolution is 800 x 480.
* Optional with gt911 capacitive touch panel.
* Backlight with different brightness options from 200 – 1000cd/m2 is available.
* Specific touch panel can be designed & customized.
* RoHS and Halogen-Free Compliance
Applications:
Medical and beauty equipment, smart device, automation, control system, office tools, multimedia applications and Others AV system
These are just few of our standard TFT modules; we still have a lot of TFT modules to offer.
If none of these modules meet your requirements in terms of brightness, interface, or connection method, please email us at info@fwdisplays.com
