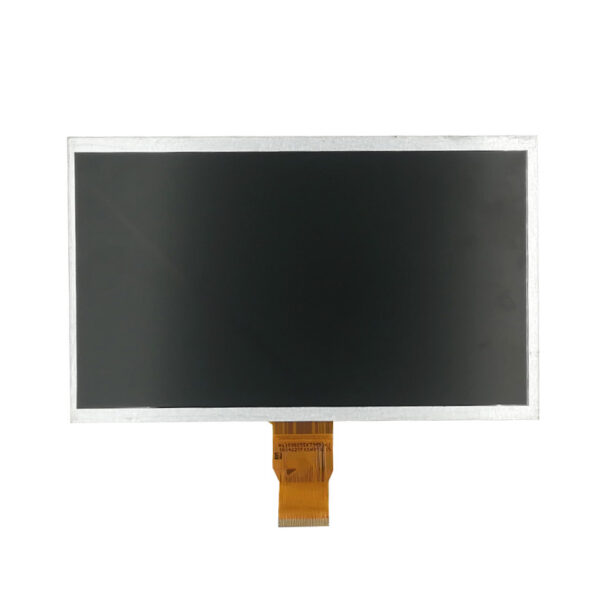

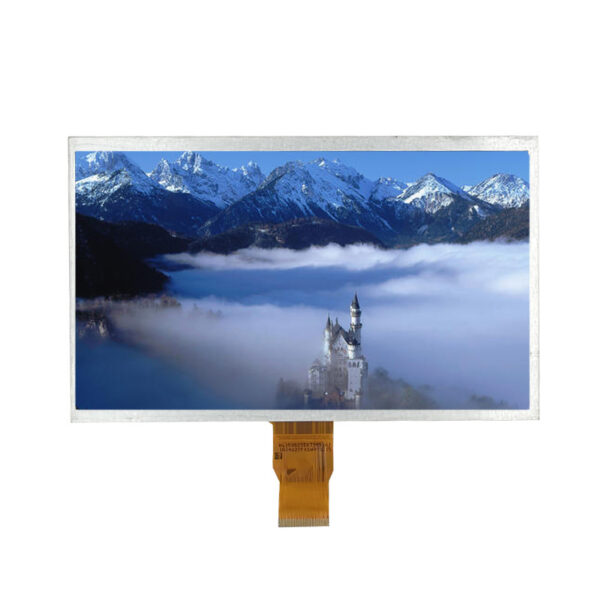

10.1″ 1024(RGB) × 600 50 Pin RGB IPS LCD Display

Categories IPS Display, TFT Displays Tags 10.1 lcd, 1026*600, TFT Display, TFT LCD

This 1026×600 resolution LCD TFT is a standard display with an RGB interface, offering true color and full view. This Liquid Crystal Display is RoHS compliant and can come with or without a touchscreen.

Additional information

Model No.	FW101TFT-V50A01
Module Size	10.1 INCH
Outline Dimension(mm)	235 × 143 × 5.1
Active Area	222.72×125.28
Number of Pixel	1024(RGB) × 600
Interface	RGB
Viewing Direction	IPS ALL
Brightness(cd/m²)	250
Operating Temperature	-20°C ~ 70°C
Storage Temperature	-30°C ~ 80°C

Product Details

10.1″ Full Color / Medium Brightness TFT Module Transmissive / Normal Black with 1026 RGB x 600

* FW101TFT-V50A01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, and backlight.

* This TFT LCD module resolution is 1024×600.

* Optional with capacitive touch panel and resistive touch screen.

* Backlights with different brightness options from 200 – 1500cd/m2 are available.

* Specific touch panels can be designed & customized.

* RoHS & REACH compliant.

Application: Embedded Systems, automation, GPS, medical equipment, Industrial device and security equipment, etc

These are just a few of our standard TFT modules; we still have a lot of TFT modules to offer.

If none of these modules meet your requirements in terms of brightness, interface, or connection method, please email us at info@fwdisplays.com
