1.77″ TFT, 128×160, 14 Pin with Touch Panel

This 128×160 resolution LCD TFT is a standard display with SPI interface, offering true color. This Liquid Crystal Display is RoHS compliant and can come with or without a touchscreen.

Additional information

Model No.	FW018TFT-V14A01
Module Size	1.77 inch
Outline Dimension(mm)	34.7(W) ×46.7(V) × 2.3(T)
Active Area	28.03 (W) × 35.04(V) mm
Number of Pixel	128(RGB) × 160
Viewing Direction	12 o’clock
Interface	4w-SPI Parallel
Operating Temperature	-20°C ~ 70°C
Storage Temperature	-30°C ~ 80°C

Product Details

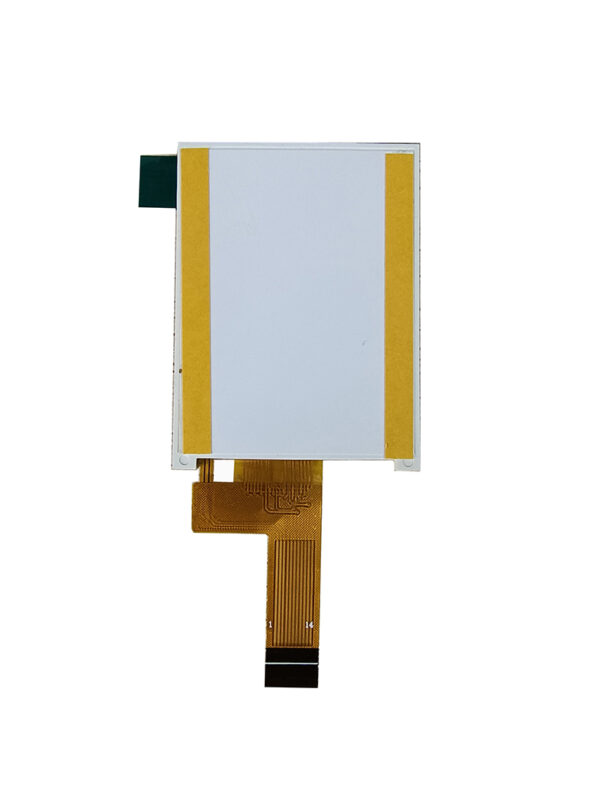

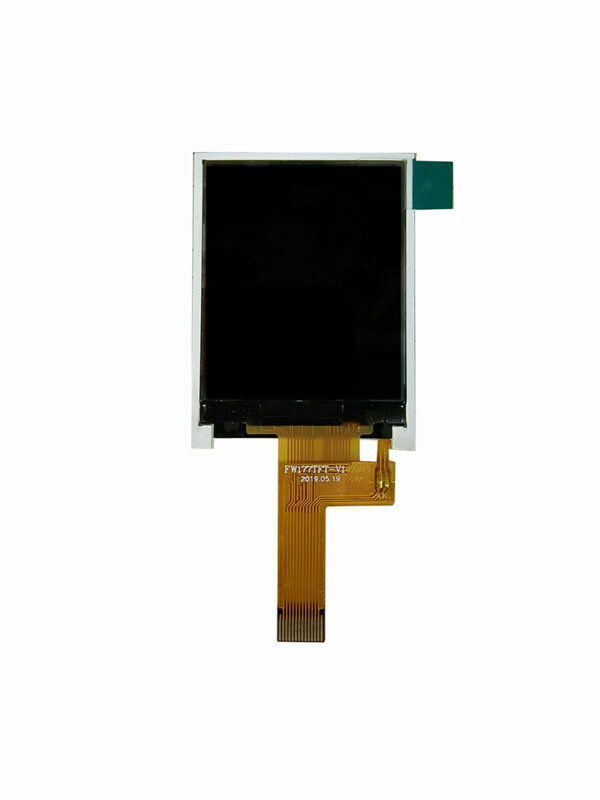

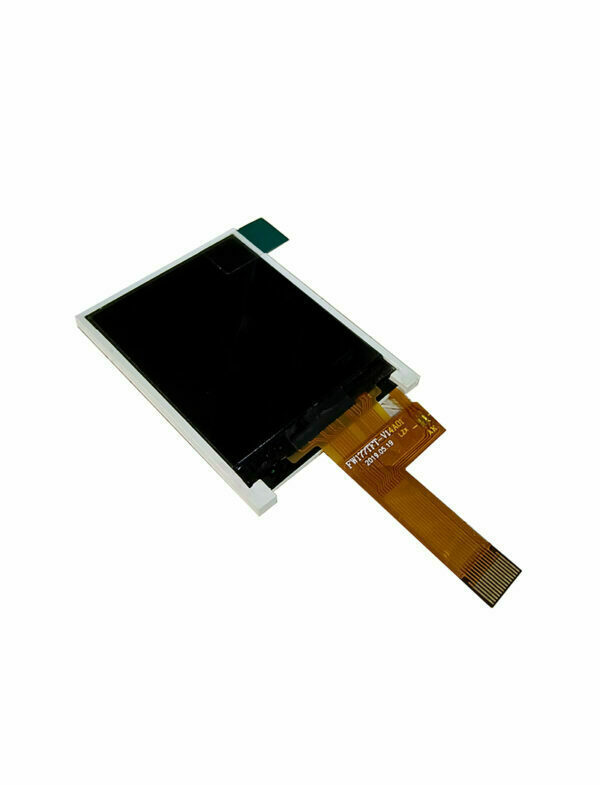

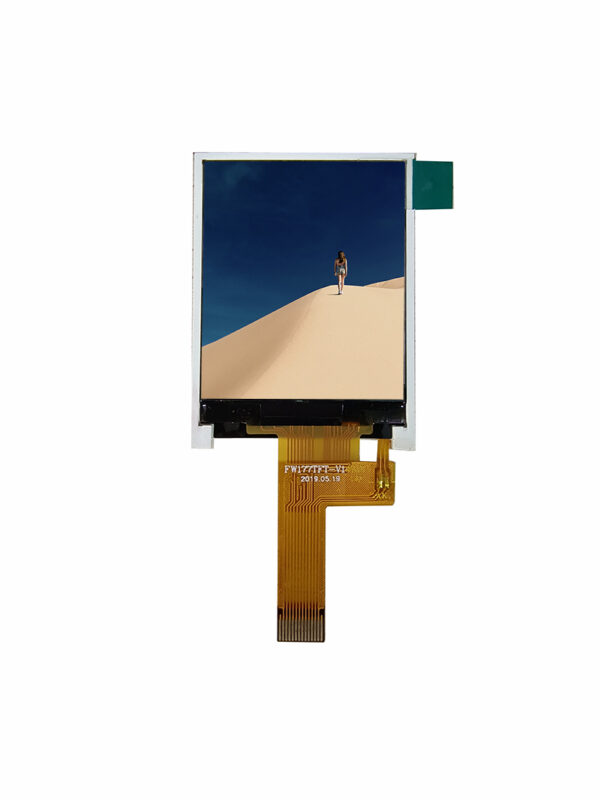

1.77″ Full Color / Medium Brightness TFT Module Transmissive / 128 x (RGB) x 160 dots, with resistive or capacitive touch panel

* FW018TFT-V14A01 is a small Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 128×160 resolution TFT LCD module.

* Backlight with different brightness options from 200 – 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

These are just few of our standard TFT modules; we still have a lot of TFT modules to offer.

If none of these modules meet your requirements in terms of brightness, interface, or connection method, please email us at info@fwdisplays.com
